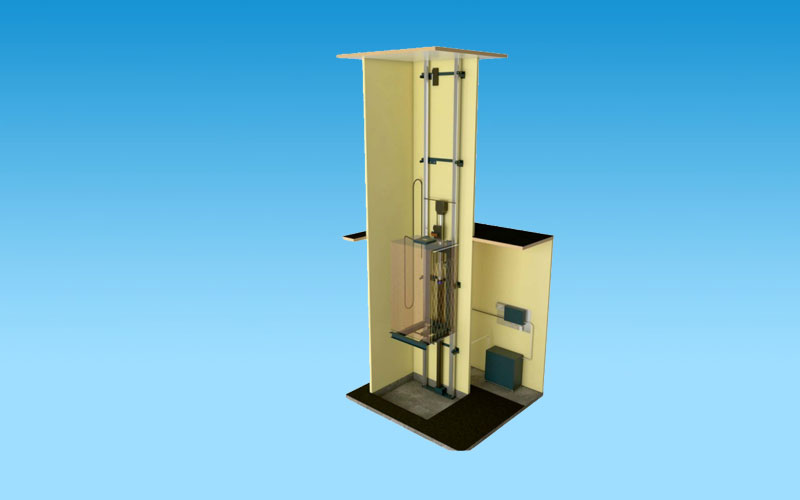

Hydraulic Elevators
We offer hydraulic elevators, installing a holeless hydraulic elevator can help people with a disability, elderly people, or people unable to climb stairs easier access to your building. Hydraulic lift motor drive and pumps has the high properties and quality. Which brings about in the extremely quiet and smooth lift running.
Its of temperature monitor system can keep the finest temperature of the oil. In this way, it guarantees the smooth elevator operation. The advanced control valve can ensure the smooth lift acceleration and deceleration under any load conditions.
Hydraulic lift adopts many safety measures such as the safety valve which protects the hydraulic system, one way valve which prevents from the return-flow of the hydraulic oil, the anti-stall device etc. Unosafe Elevator Pvt Ltd Elevate our ima ination safel Iift our Iife
| Description | Hydraulic |
|---|---|
| Machine | AC Power Pack /Piston |
| Function Type | Oil Pumping |
| Speed | 0.5mps |
| Power Consumption | 3 unit / hr (approx) |
| Oil Maintenance | Yes |
| Break Type | Automatic Hydraulic Valve |
| Roping | 1:1 |
| Overhead | 3600mm |
| Pit | 900mm |
International Standard Dimensions
| Capacity | Load | Shaft Size | Car Size | Entrance | ||
|---|---|---|---|---|---|---|
| PC | KG | SW | SD | CW | CD | CO |
| 2 | 150 | 1500 | 1300 | 800 | 800 | 700 |
| 3 | 225 | 1500 | 1400 | 800 | 900 | 700 |
| 4 | 300 | 1500 | 1600 | 800 | 1100 | 700 |
| 5 | 375 | 1700 | 1700 | 1000 | 1100 | 700 |
| 6 | 450 | 1800 | 1800 | 1100 | 1100 | 800 |
| 8 | 600 | 1800 | 1800 | 1100 | 1400 | 800 |
| 10 | 750 | 1900 | 1900 | 1200 | 1500 | 900 |
